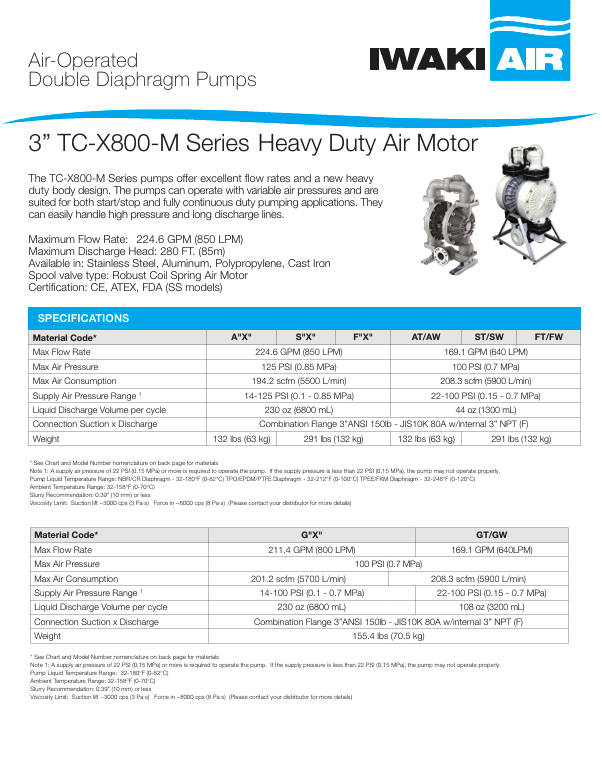

3″ TC-X800-M Series

The TC-X800-M Series pumps offer excellent flow rates and a new heavy duty body design. The pumps can operate with variable air pressures and are suited for both start/stop and fully continuous duty pumping applications. They can easily handle high pressure and long discharge lines.

– Maximum Flow Rate: 224.6 GPM (850 LPM)
– Maximum Discharge Head: 280 FT (85 m)
– Available in: Stainless Steel, Aluminum,
Polypropylene & Cast Iron
– Spool Valve Type: Robust Coil Spring Air Motor
[ View all 3″ Pumps ]

TC-X801 Series Air Diaphragm Pumps
