Suction Lift Capabilities of AODD Pumps
When choosing a pump for industrial fluid transfer, one of the most crucial factors to consider is suction lift—especially if the pump is installed above the fluid source. For this reason, many industries turn to Air-Operated Double Diaphragm (AODD) pumps, known for their exceptional suction lift performance and operational versatility.
Suction lift refers to a pump’s ability to draw liquid from a source that is physically lower than the pump inlet. This often occurs when the pump is mounted above a tank, drum, or pit. The height the fluid must travel vertically to reach the pump is called the suction lift height.
In systems where gravity cannot assist fluid flow into the pump, the pump must create a vacuum on the suction side strong enough to “pull” the fluid upward. This is where diaphragm pump suction lift distance becomes a critical metric.
AODD Pump Suction Lift: How It Works

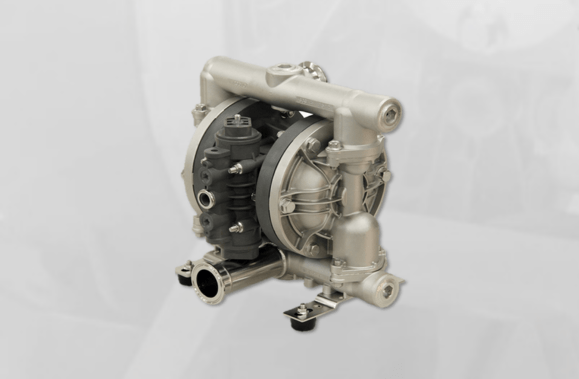

An Air-Operated Double Diaphragm pump uses compressed air to drive diaphragms back and forth in opposing chambers, creating a vacuum that draws fluid into the pump. Due to their design, these pumps can achieve strong suction lift without the need for complex priming systems.
In general, a properly configured air operated pump suction lift capability can reach:
- Up to 20 feet (6 meters) for water-like fluids
- Lower distances for viscous or heavy fluids
This makes them ideal for draining below-grade tanks, unloading drums, or handling remote installations.
Key Factors Affecting Suction Lift
Several variables influence the suction lift capability of aodd pumps, including:
Fluid Viscosity and Density: Thicker or heavier fluids reduce lift capacity. For example, honey or oil-like substances won’t lift as far as water.
Temperature: Hot fluids can vaporize in the suction line, reducing lift potential. AODD pumps often need special materials to handle elevated temperatures.
Line Losses and Piping Design: Long suction lines, elbows, and vertical climbs introduce friction and reduce lift height. Use short, straight suction lines whenever possible.
Pump Material and Configuration: The diaphragm pump suction height is also influenced by the internal design, check valve type, and elastomer materials used.
Air Supply: Sufficient and consistent air pressure and volume (CFM) are necessary for optimal lift performance. A drop in air pressure directly affects suction ability.
AODD Pump Self-Priming Capability
Another reason AODD pumps are popular for lifting applications is that they are self-priming. This means they don’t require pre-filling or manual intervention to begin operation.
With AODD pump self-priming features:
- The pump can evacuate air from the suction line on its own
- Operation can start even with dry suction lines
- They can run dry temporarily without damage, which is useful when the fluid source is inconsistent
Self-priming is especially beneficial in mobile or remote installations where manual priming is difficult or impossible.
How Far Can an AODD Pump Lift Fluid?
One of the most commonly asked questions is: how far can an AODD pump lift fluid?
In typical conditions:
- For clean, non-viscous liquids, the suction lift distance can reach up to 20 feet
- For viscous or slurry-type fluids, lift height drops significantly — often to 10–15 feet or less
- Using larger inlet lines or low-friction piping can improve effective lift
It’s important to always check the manufacturer’s pump curves and datasheets to determine actual performance under your specific conditions.
Suction Lift vs. Flooded Suction
Let’s look at suction lift vs. flooded suction, as the distinction often influences installation decisions.
Suction Lift:
- Pump is mounted above the fluid level
- Creates vacuum to draw fluid upward
- Suitable for mobile, remote, or drum-unloading applications
- Requires proper air supply and careful piping design
Flooded Suction:
- Pump is mounted below the fluid level
- Fluid flows into the pump by gravity
- Preferred when possible for consistent flow and less wear
- Often used in stationary, high-volume systems
