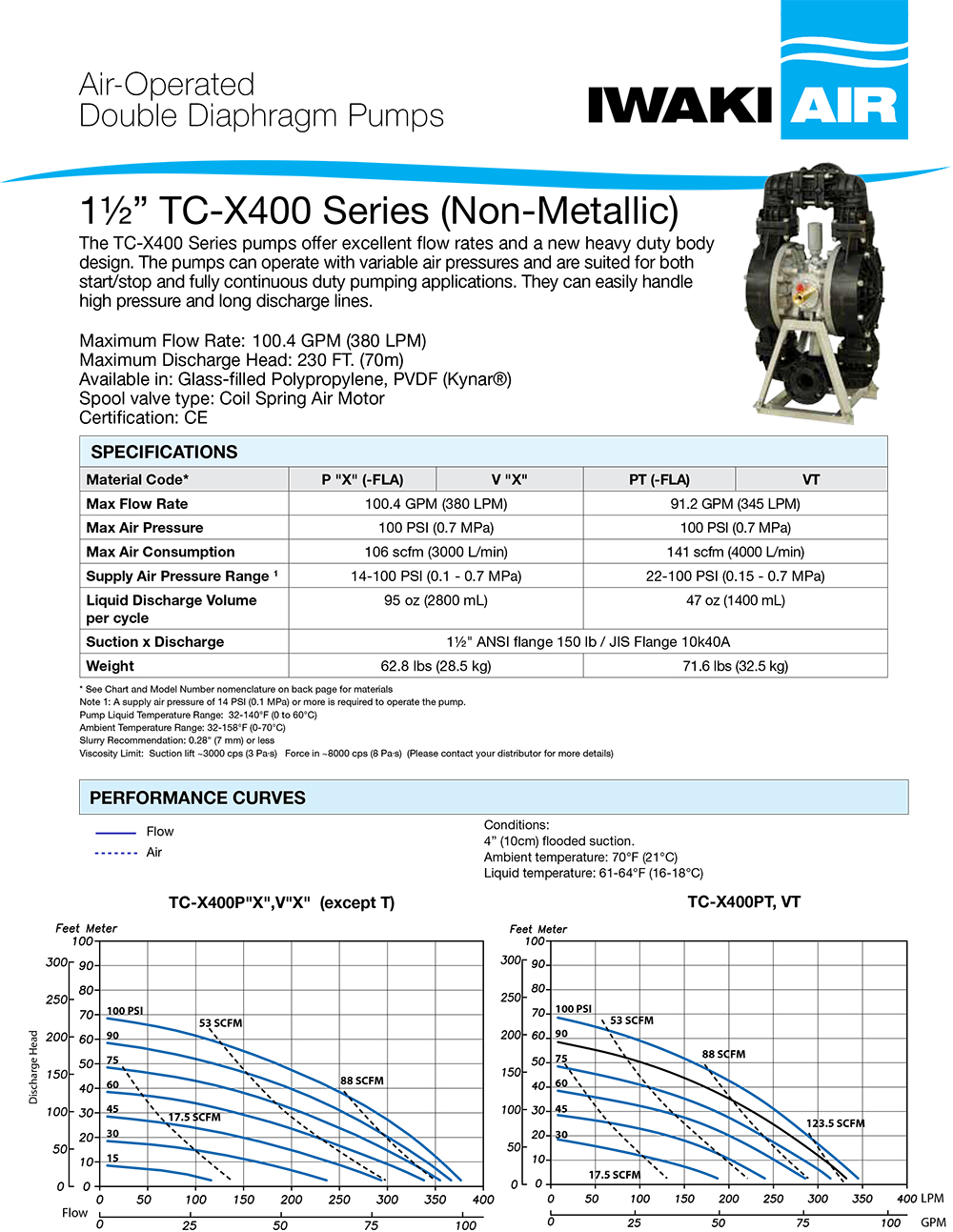

1 1/2″ TC-X400 Series

TC-X400 pumps offer excellent flow rates and a new heavy duty body design. The pumps can operate with variable air pressures and are suited for both start/stop and fully continuous duty pumping applications. They can easily handle high pressure and long discharge lines.

Maximum Flow Rate: 100.4 GPM (380 LPM)
Maximum Discharge Head: 230 FT (70 m)
Maximum Solids Size: 7 mm
Available in: Glass-filled Polypropylene,
PVDF (Kynar®)
Shuttle Valve type: Coil Spring Air Motor
